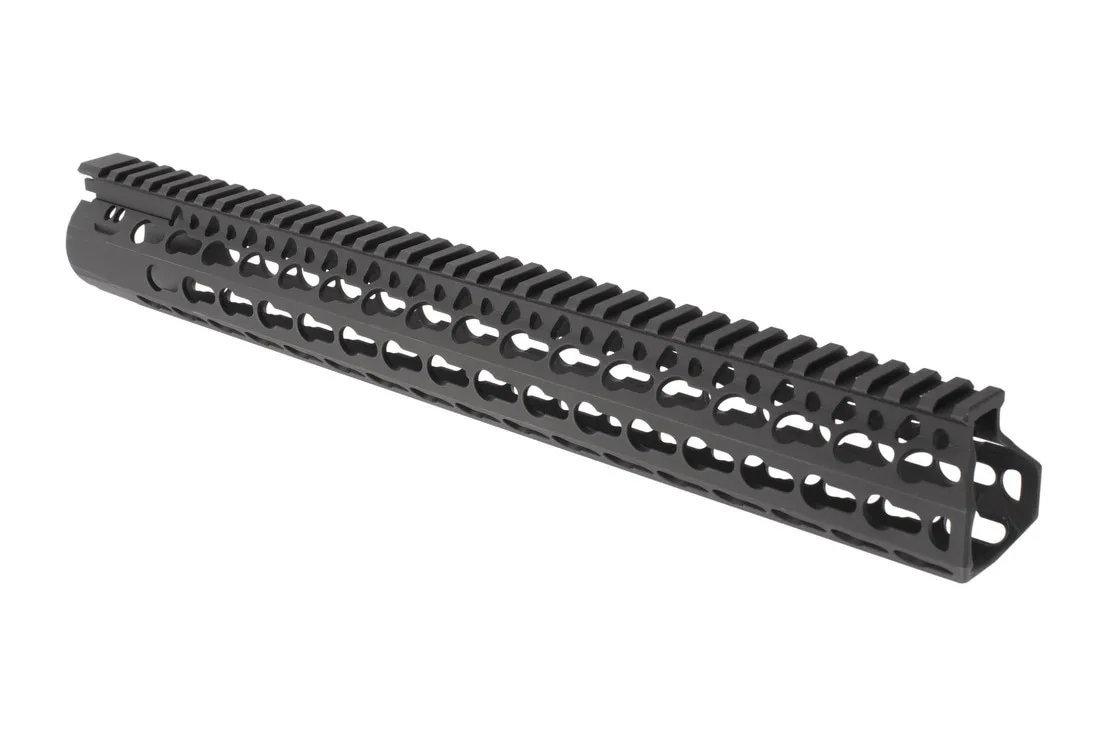

KMR ALPHA KeyMod Free Float AR-15 Handguard – 15″

Built for shooters who demand rigidity without excess weight, the KMR ALPHA handguard delivers a no-nonsense upgrade for your AR-15. Its aerospace-grade aluminum construction sheds ounces while maintaining zero under hard use, and the KeyMod system keeps accessories secure without bulky rails. Whether you’re building a lightweight patrol rifle or upgrading a competition gun, this 15″ handguard balances reach and maneuverability. We ship to all US states — fast and discreet.

Key Specifications

• Material: 6061-T6 aluminum with Type III hardcoat anodizing
• Length: 15″ (true measured length: 15.1″)
• Weight: 9.8 oz (bare handguard)
• Attachment: Proprietary barrel nut system (included)
• Compatibility: Standard AR-15/M16 upper receivers (not for piston systems)
• Finish: Matte black

Feature Breakdown

The KMR ALPHA’s monolithic top rail provides uninterrupted sight alignment, critical for optics or backup iron sights. Machined relief cuts along the sides reduce weight while maintaining structural integrity – we’ve seen these handle repeated drops onto concrete during testing without deformation. Unlike some competitors, the interior diameter accommodates most suppressor mounts without requiring modification.

KeyMod slots offer more than just weight savings; their angled design prevents accessory rotation under recoil. Each slot is CNC-machined to exacting tolerances – no cast metal or rough edges here. The system works with all standard KeyMod attachments (sold separately), from sling mounts to bipod adapters.

Installation requires basic AR armorer skills but avoids specialized tools. The included barrel nut uses a standard armorer’s wrench (not included), and the anti-rotation tabs positively lock against your upper receiver. Unlike some free-float designs, there’s no need to time the nut or use shims – torque to 35-40 ft/lbs and you’re set.

Heat management comes from the handguard’s open architecture and anodized finish. During sustained fire testing with a 16″ barrel, the exterior remained cool enough for bare-handed operation. The underside’s smooth profile won’t snag on gear, whether you’re transitioning between barricades or stowing in a vehicle rack.

Compatibility Notes

• Fits mil-spec AR-15 uppers (check for M4 feed ramps if pairing with certain barrels)
• Clears low-profile gas blocks (max height: 1.3″ from barrel centerline)
• Not compatible with:
  • Piston-driven systems
  • Some aftermarket upper receivers with oversized diameter
  • Barrels with permanently attached front sight bases

Installation Overview

Remove existing handguard components and barrel nut from your upper receiver. Slide the KMR ALPHA’s proprietary barrel nut onto the barrel, aligning the gas tube channel. Secure with an armorer’s wrench at 35-40 ft/lbs, then slide the handguard onto the nut’s splines. The anti-rotation tabs should seat flush against your upper receiver – if not, verify proper barrel nut alignment. Finally, install the two tension screws (included) using the provided hex key.

Frequently Asked Questions

Q: Will this fit a .750″ or .625″ low-profile gas block?
A: Yes, both diameters clear the interior when properly installed.

Q: Is the barrel nut steel or aluminum?
A: Steel with a black oxide finish – we don’t cut corners on stress-bearing components.

Q: Can I use M-LOK accessories with this handguard?
A: Not directly; KeyMod and M-LOK are incompatible systems without adapters.

Q: What’s the inside diameter for suppressor clearance?
A: 1.5″ – sufficient for most QD mounts but verify your specific suppressor’s dimensions.

Q: Does this come with a wrench or installation tools?
A: Only the hex key for tension screws; you’ll need a standard armorer’s wrench for the barrel nut.

Warranty & Shipping

Lifetime warranty against manufacturing defects (excludes cosmetic damage from normal use). All orders ship within 1 business day via USPS or UPS with discrete packaging – no external markings indicate contents. Contact us before returning any items; we’ll provide a prepaid label for defective products.
