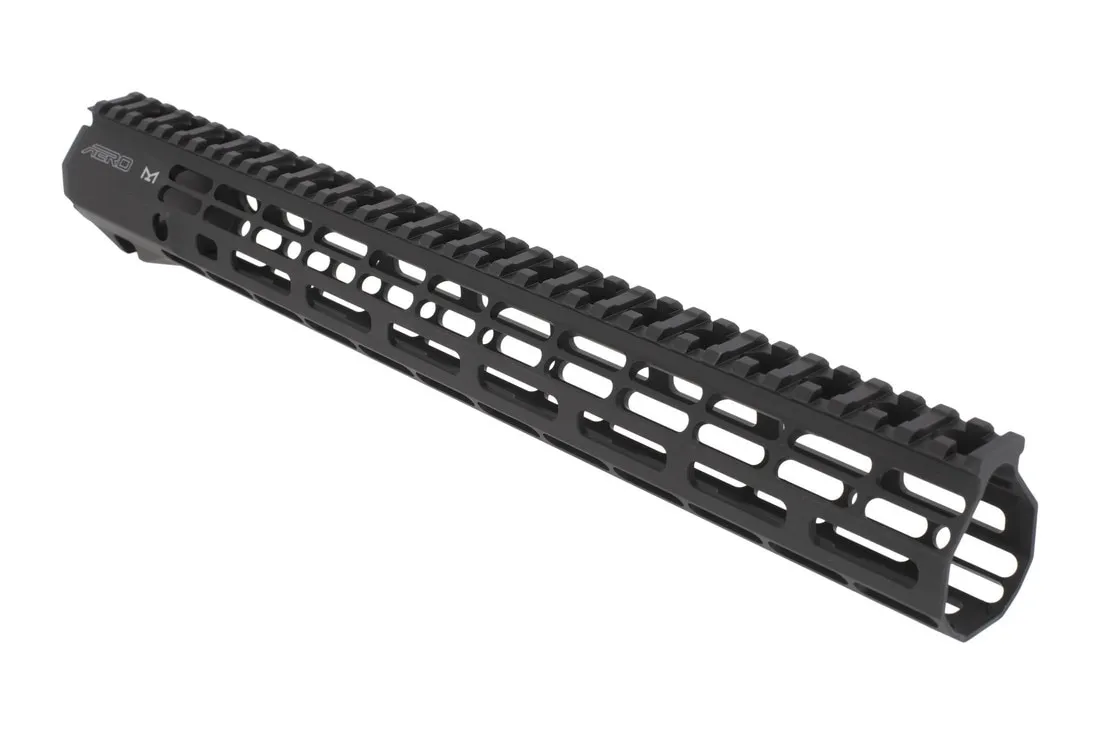

Aero Precision ATLAS R-ONE M-LOK AR-15 Handguard – Black – 15″

Built for shooters who demand rigidity without excess weight, the Aero Precision ATLAS R-ONE handguard delivers a streamlined platform for optics, lights, and grips. Its continuous top rail and M-LOK slots offer modularity while maintaining a slim profile for improved handling. Compatible with most AR-15 uppers, this 15″ model balances maneuverability and rail space for mid-length to rifle-length gas systems. Ships fully assembled with barrel nut and hardware included.

Key Specifications

• Material: 6061-T6 aluminum with Type III hardcoat anodizing
• Length: 15″ (actual rail space: 14.375″)
• Weight: 11.2 oz (without hardware)
• Attachment System: M-LOK at 3/6/9 o’clock positions
• Top Rail: Continuous Picatinny for optics/sights
• Inner Diameter: 1.72″ (clears most suppressors)
• Included: Barrel nut, wrench flats, anti-rotation tabs

Feature Breakdown

The ATLAS R-ONE’s tapered design reduces bulk where your support hand grips while retaining full rail strength. Eight M-LOK slots per side (excluding 12 o’clock) accommodate modern accessories without requiring bulky adapters. The recessed top rail minimizes snag points but maintains zero for backup iron sights. Machined anti-rotation tabs lock the handguard securely to the upper receiver.

Installation requires no specialized tools beyond an armorer’s wrench for the barrel nut. The two-piece clamping system eliminates timing concerns common with older free-float designs. Aero Precision’s proprietary barrel nut accepts standard AR-15 wrenches, though shims may be needed for perfect clocking. Clearance for adjustable gas blocks depends on block profile – measure before installation.

Durability comes from the 6061-T6 aluminum construction, which withstands impacts better than polymer alternatives. The matte black anodizing resists holster wear and solvents. Unlike some competitors, the R-ONE doesn’t rely on set screws that can vibrate loose under recoil. The monolithic top rail maintains consistent point-of-impact when reinstalling optics.

Heat management is improved by the open-bottom design, allowing airflow around the gas tube. The handguard stays cooler during rapid strings of fire compared to fully enclosed models. Slim sidewalls prevent heat transfer to gloves while providing enough surface area for a firm C-clamp grip.

Compatibility Notes

• Fits most mil-spec AR-15 upper receivers
• Designed for free-float barrels with mid-length or rifle-length gas systems
• May interfere with some front-sight tower gas blocks (measure clearance)
• Not compatible with delta ring or carbine-length handguard retention systems
• Works with .750″ and .625″ low-profile gas blocks (verify clearance)

Installation Overview

Remove existing handguard components including delta ring if present. Slide the barrel nut onto the barrel threads and torque to spec (typically 30-80 ft-lbs). Align the handguard’s anti-rotation tabs with the upper receiver’s indexing points. Secure using the provided bolts, alternating tightening sequence to ensure even pressure. Final torque should not exceed 65 in-lbs on mounting hardware.

FAQ

Q: Does this work with a standard AR-15 armorer’s wrench?
A: Yes – the barrel nut accepts common AR-15 wrench teeth. No proprietary tools required.

Q: Will my suppressor fit inside the handguard?
A: The 1.72″ ID clears most 1.5″ diameter suppressors, but verify your specific model’s dimensions.

Q: Is the top rail actually continuous?
A: Yes – no breaks or gaps between the upper receiver rail and handguard rail.

Q: Can I install this without removing the gas tube?
A: No – the barrel nut installation requires gas tube removal during the process.

Q: Does the black finish match Aero Precision uppers?
A: The Type III anodizing is consistent with their receiver sets, but slight variations can occur between production batches.

Warranty & Shipping

Aero Precision backs this handguard against manufacturing defects. Normal wear from installation/use isn’t covered. Ships via USPS or UPS with tracking provided. Continental US orders typically process within 1 business day. No international shipping.
